| 이름: | 스테인레스 스틸 와이어 로프 낙하 방지 네트 | 키워드: | 유연한 스테인레스 스틸 케이블 망 |
|---|---|---|---|
| 재료: | AISI 316 304 | 매시 구조: | 1*7, 7*7, 1*19 또는 7x19 |
| 케이블 직경: | 10.2mm ~ 3.2mm | 동물원 메쉬 유형: | 직물 및 펠러 |
| 특징: | 부식 저항성, 확장성, 유연한 스테인리스 스틸 동물원 메시 | 메쉬 눈 크기: | 50mm에서 100mm 또는 그 이상 |
| 강조하다: | stainless steel wire rope net,anti-fall drop prevention net,school safety cable mesh |
||
Manufactured from 316 'marine grade' stainless steel, the Webnet mesh system can be specified for any balustrade requiring a contemporary infill.

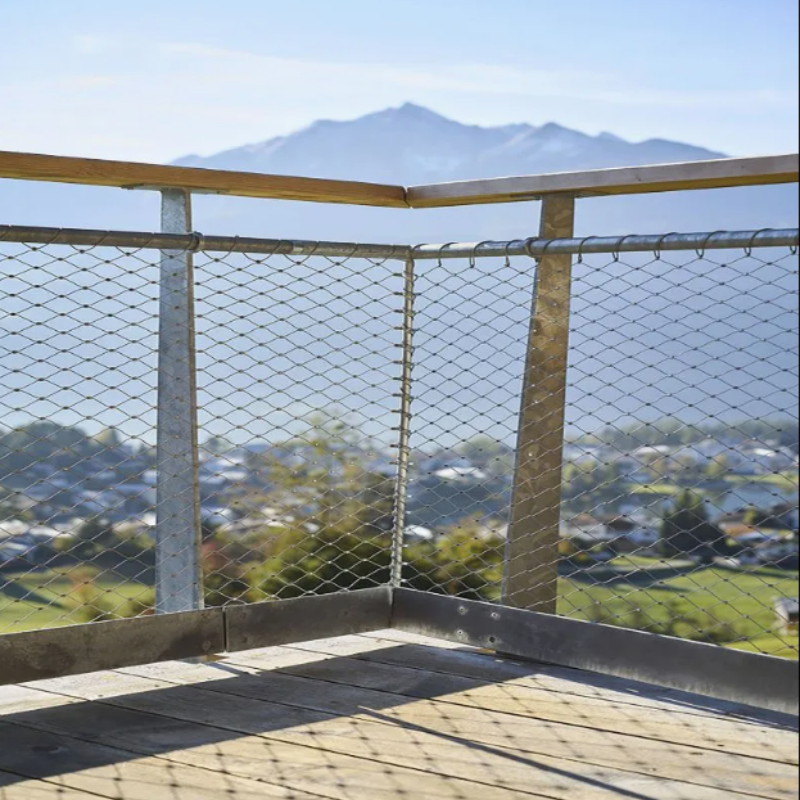

Wire Rope Net is custom manufactured in widths and lengths to suit your balustrade, railing or architectural application. Diagonal and irregular shapes can also be supplied.
Mesh sizes range from 25mm x 25mm to 250mm x 250mm with stainless cable diameters from 1.2mm to 3.2mm.
Mesh can be applied in either a vertical or horizontal direction, dependent on the balustrade or railing design and the required aesthetics.

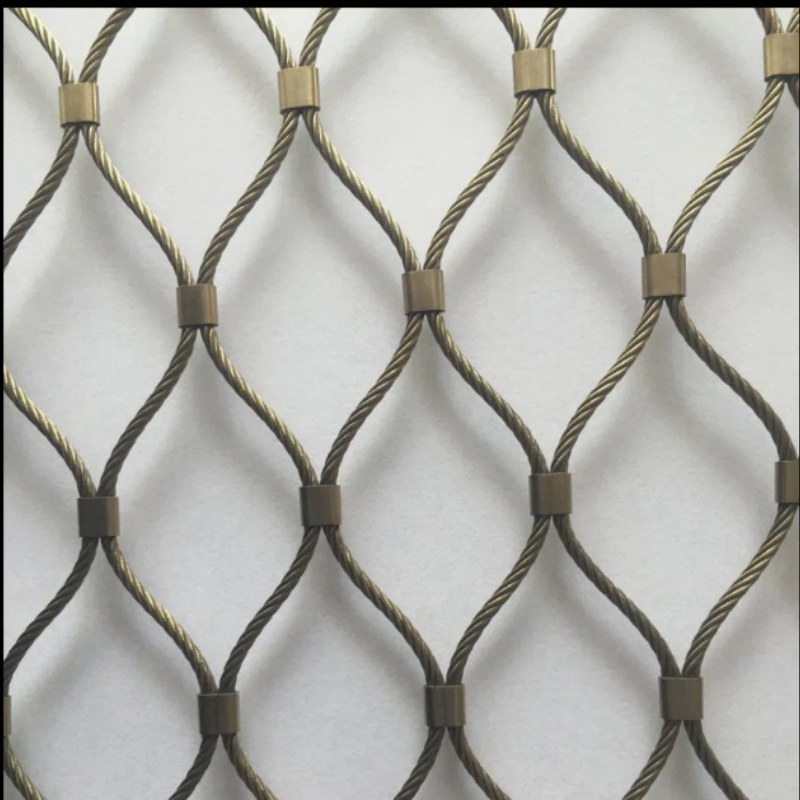

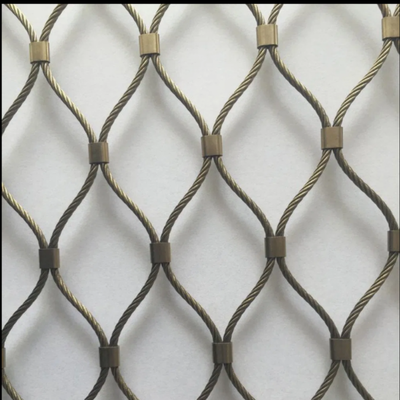

Finished diamond mesh style when stretched at 60 degree angle.
| Attribute | Value |
|---|---|
| Cable Diameter | 1.2mm to 3.2mm |
| Mesh Type | Woven and ferrule |
| Material | AISI 316/304 |
| Mesh Construction | 1×7, 7×7, 1×19 or 7×19 |
| Features | Corrosion resistance, flexible stainless steel mesh |
| Mesh Eye Size | From 50mm to 100mm or larger |
| Cable Diameter | 1.2mm to 3.2mm |
| Opening Size | 20×20mm to 102×102mm |
| Transport | By sea or by air |
