| 원래 장소: | 중국 허베이 |
|---|---|
| 브랜드 이름: | Yuntong |
| 인증: | CE |
| 모델 번호: | YT-F-2075 |
| 최소 주문 수량: | 10 평방 미터 |
| 가격: | USD 2-50 |
| 포장 세부 사항: | 방수 직물, 판지 상자 또는 나무로 되는 케이스 |
| 배달 시간: | 5-8 근무일 |
| 지불 조건: | T/T, 서부 동맹, 페이팔 |
| 공급 능력: | 300sqm/주 |
| 제품명: | X 텐드 케이블 메쉬 | 키워드: | 스테인레스 스틸 와이어 로프 메쉬 |
|---|---|---|---|
| 메쉬 홀 크기: | 50mm에서 100mm 이상 | 메쉬 유형: | 원활한 페럴 |
| 재료: | SS304, SS316 | 제품 유형: | X-tend 와이어 로프 메쉬 |
| 메쉬 크기: | 관습 | 와이어 로프 직경: | 2.0mm, 2.5mm, 3.0mm |
| 강조하다: | stainless steel aviary net,flexible zoo bird net,x tend cable mesh wire |
||

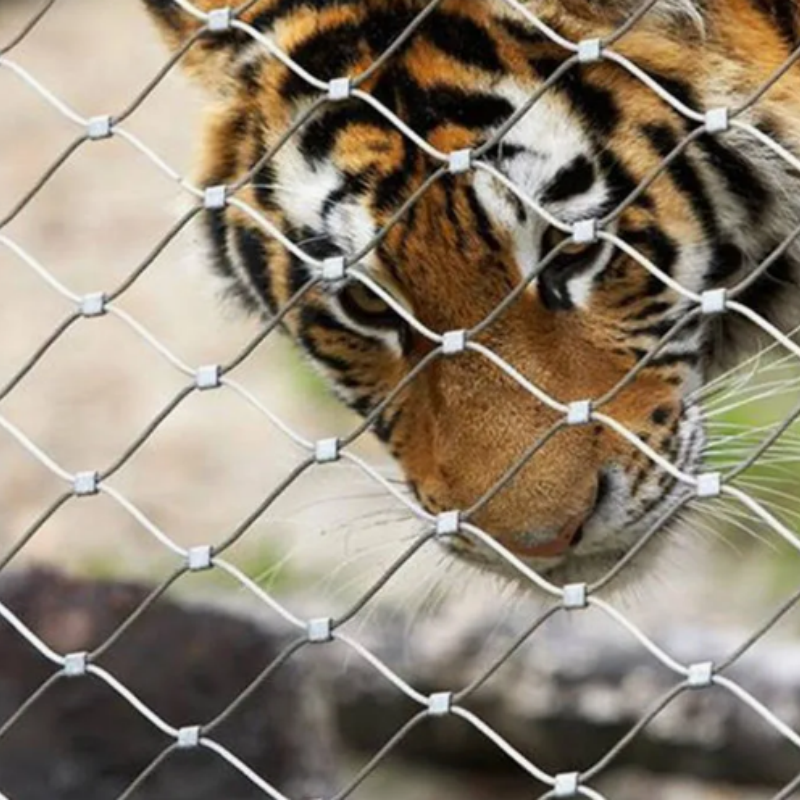

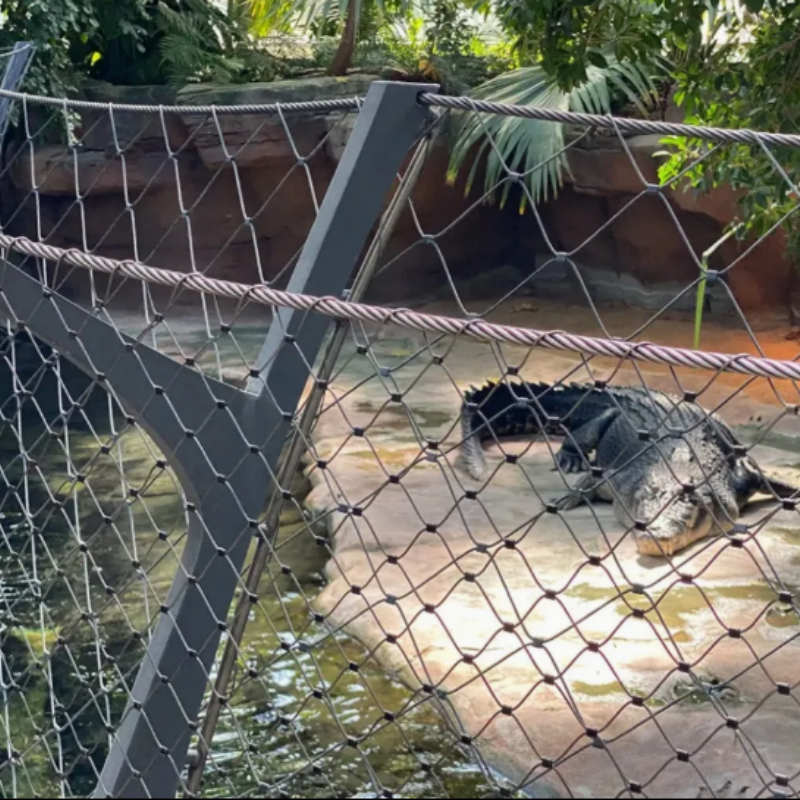

Flexible Stainless Steel Wire Ferrule X Tend Cable Mesh Net for Zoo Bird Aviary Net
The product features of X Tend Cable Mesh
Material: stainless steel 304, 304L, 316, 316L.
Ferrule material: tinned copper, nickel plated copper, stainless steel.
Surface treatment: primary color or black oxide finish.
Cable diameter: 1.0-5.0 mm.
Mesh opening sizes: 25-200 mm.
Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Ordering: specific to order, according to the project.
Construction of wire cable: 7 × 7, 7 × 19.
Connection: ferrule or knotted.
Brief Intructions :
| Product Name | Architectual Facade Cladding |
| Mesh Style | X-tend Mesh |
| Mesh Type | Seamless Ferruled |
| Ferrules | Stainless Steel Ferrules or Aluminum Ferrules |
| Application | Architectual Facade Cladding |
| Material | SS304 , SS316 , SS316L , |
| Wire Rope | 2.0 mm , 2.5 mm , 3.0 mm |
| Mesh Aperture | 50 x 50 mm , 60 x 60 mm , 75 x 75 mm , 100 x 100 mm |
| Mesh Angle | 60 Degree |
| Mesh Orientation | Horizontal or Vertical |
Features of X Tend Cable Mesh Net
The pliable, high-strength mesh system provides architects and designers with the scope to create solutions for many different applications. It is UV and weather resistant.Webnet mesh can also be supplied in a black anodised or a galvanised finish.
Our technical support team is available to offer full design and technical advice on projects of any scale and complexity.We provides balustrade assemblies with the cable mesh preinstalled on stainless steel frames. Webnet Mesh is available in rectangular or rhomboid form in different sizes and mesh widths. Special assembly kits make installation easy.
The X Tend Cable Mesh is rhombus mesh, has excellent flexible performance, virtually
indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane.
The stainless steel wire rope woven mesh material is used high quality stainless steel wire cable, the
stainless steel grade includes AISI 304 or AISI 316 material group.
