| 원래 장소: | 중국 허베이 |
|---|---|
| 브랜드 이름: | Yuntong |
| 인증: | CE |
| 모델 번호: | YT-F-2075 |
| 최소 주문 수량: | 10 평방 미터 |
| 가격: | USD 2-50 |
| 포장 세부 사항: | 방수 직물, 판지 상자 또는 나무로 되는 케이스 |
| 배달 시간: | 5-8 근무일 |
| 지불 조건: | T/T, 서부 동맹, 페이팔 |
| 공급 능력: | 300sqm/주 |
| 제품명: | 스테인레스 스틸 와이어 케이블 로프 네트 | 키워드: | 스테인리스 케이블 메쉬 |
|---|---|---|---|
| 제품 유형: | X-tend 와이어 로프 메쉬 | 재료: | SS304, SS316 |
| 와이어 로프 직경: | 2.0mm, 2.5mm, 3.0mm | 메쉬 홀 크기: | 50mm에서 100mm 이상 |
| 메쉬 유형: | 원활한 페럴 | 메쉬 크기: | 관습 |
| 강조하다: | stainless steel cable rope net,handrail wire cable mesh,falling curing stairway net |
||

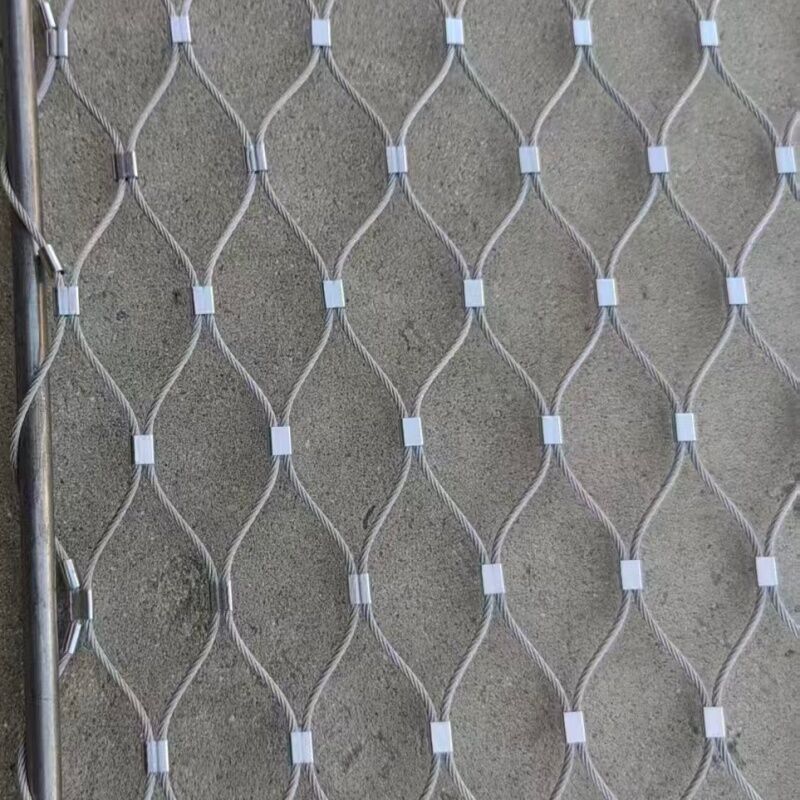

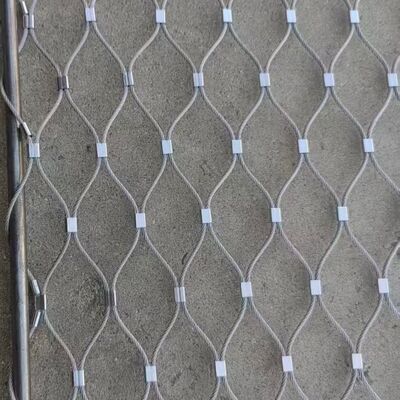

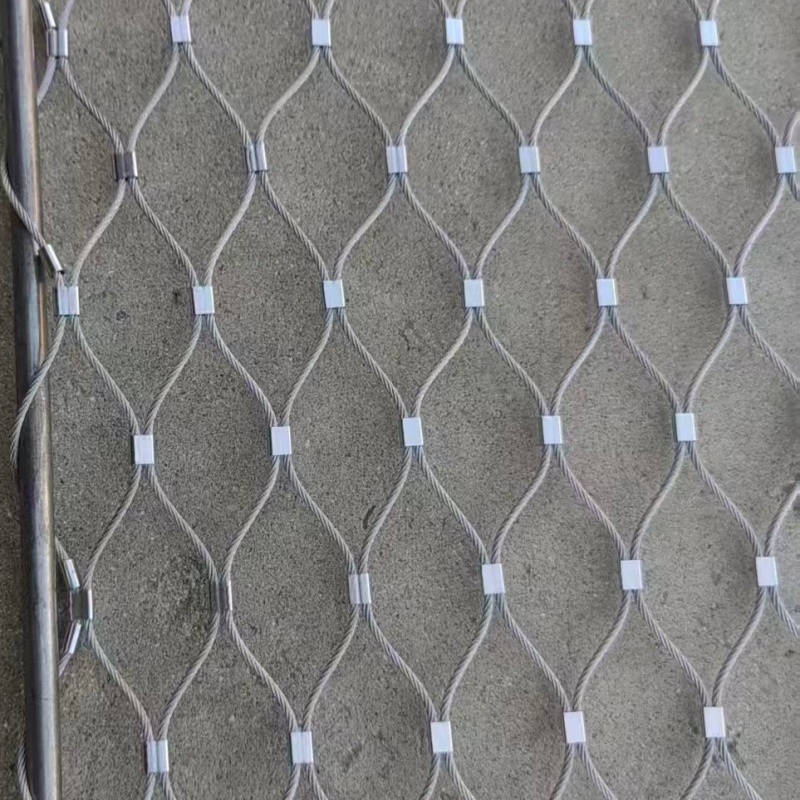

Stairway Falling Curing Stainless Steel Wire Cable Rope Net For Handrail
The product features of Stainless Steel Wire Cable Rope Net
Material: stainless steel 304, 304L, 316, 316L.
Ferrule material: tinned copper, nickel plated copper, stainless steel.
Surface treatment: primary color or black oxide finish.
Cable diameter: 1.0-5.0 mm.
Mesh opening sizes: 25-200 mm.
Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Ordering: specific to order, according to the project.
Construction of wire cable: 7 × 7, 7 × 19.
Connection: ferrule or knotted.
The stainless steel Wire Cable Rope Net is rhombus mesh, has excellent flexible performance, virtually
indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane.
The stainless steel wire rope woven mesh material is used high quality stainless steel wire cable, the
stainless steel grade includes AISI 304 or AISI 316 material group.
Brief Intructions :
| Product Name | Architectual Facade Cladding |
| Mesh Style | X-tend Mesh |
| Mesh Type | Seamless Ferruled |
| Ferrules | Stainless Steel Ferrules or Aluminum Ferrules |
| Application | Architectual Facade Cladding |
| Material | SS304 , SS316 , SS316L , |
| Wire Rope | 2.0 mm , 2.5 mm , 3.0 mm |
| Mesh Aperture | 50 x 50 mm , 60 x 60 mm , 75 x 75 mm , 100 x 100 mm |
| Mesh Angle | 60 Degree |
| Mesh Orientation | Horizontal or Vertical |
Features of Stainless Steel Wire Cable Rope Net
The pliable, high-strength mesh system provides architects and designers with the scope to create solutions for many different applications. It is UV and weather resistant.Webnet mesh can also be supplied in a black anodised or a galvanised finish.
Our technical support team is available to offer full design and technical advice on projects of any scale and complexity.We provides balustrade assemblies with the cable mesh preinstalled on stainless steel frames. Webnet Mesh is available in rectangular or rhomboid form in different sizes and mesh widths. Special assembly kits make installation easy.
